EXTERNAL INTERNAL BRICK SLIP INSULATED CLADDING

Modular - Traditional - ICF - Steel - Timber and SIP build

We have two Brick Slip Insulated Tracker Systems, Fibre Cement and EPS (lightweight)
Our Cement Fibre brick slip tracker panels are A1 fire rated boards with 60min fire resistance
Brictec Systems; De Skilled and fast Installations as shown in the (Videos)
'NEW' we have 9mm-10mm-12mm & 15mm Brick Slip Tracker/Backing Boards Brictec's EPS - Brick Slip Cladding Board (Metric & Imperial)
Brictec's Insulation Brick Slip Cladding Board is a lightweight insulation board with a high strength to weight ratio. The board is specifically designed for brick slip heights of 50mm, 65mm, 68mm and 73mm. The system is can be installed on Traditional, Timber, Durisol, Steel, ICF, Masonry and Concrete substrates.

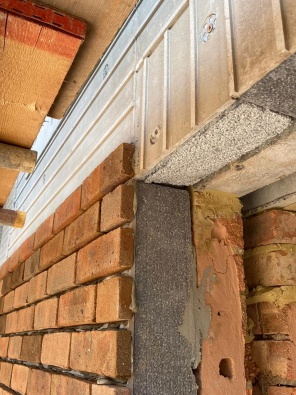

100mm Insulated Render Boards and Brick Slip Tracker Panels

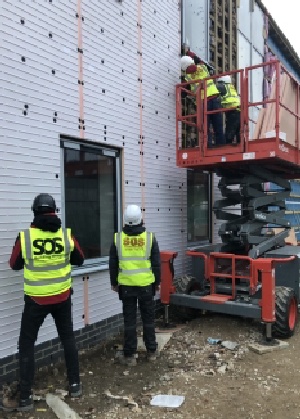

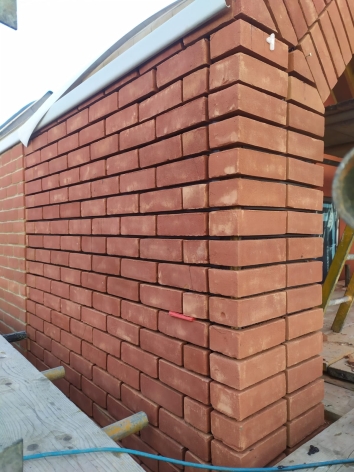

900 m2 with Insulated Tracker Panels

Thickness of tracking panel Insulation are between: 20mm to 200mm (your Choice)

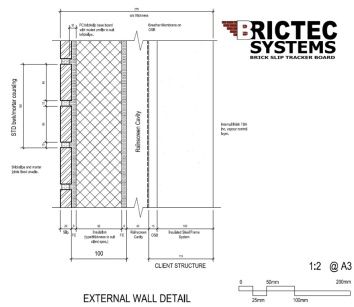

Brictec's Build Up for Modular Buildings

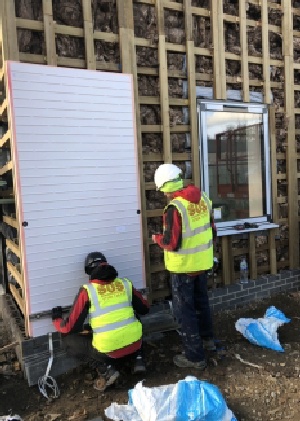

Our Insulated Brick Slip Tracker Panels

Tracking sheets also available: In FR ABS In 17mm - 25mm - 50mm - 100mm and Bespoke
Insulation backing boards, We have a format suitable for Imperial brick sizes and Bespoke

Expanded polystyrene insulation or EPS insulation is manufactured using a mould to contain small foam beads. Heat or steam is then applied to the mould, which causes the small beads to expand and fuse together. This manufacturing process does not form a closed cell insulation as there can often be voids between each of the beads where they are not touching one another.

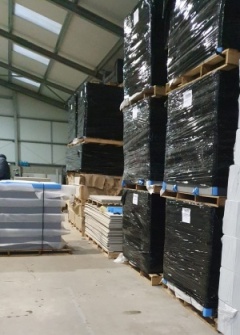

Our Insulated 65mm Brick Slip Tracking and 50mm Tracking Panels waiting to be loaded

Another full Load of Insulated Brick Slip tracker panels Shipped



Benefits
Ideal for renovation to existing masonry and concrete substrates.
Lightweight and easy to handle and fast to fix, minimising disruption of existing foundations, services and building occupants.
Can be installed in new build projects saving time, costs and weight in structure and foundations.
Low maintenance and indistinguishable from traditional brickwork with a life span of over 25 years.
Transforms the property's appearance, improves internal comfort conditions and helps to eliminate damp and condensation problems.
Insulates walls, saving energy, reducing heating bills and carbon emissions, making Brictec's (EPS) efficient on energy while acting as external wall cladding. We Give a 25 year product guarantee provided by Brictec.

Technical Info

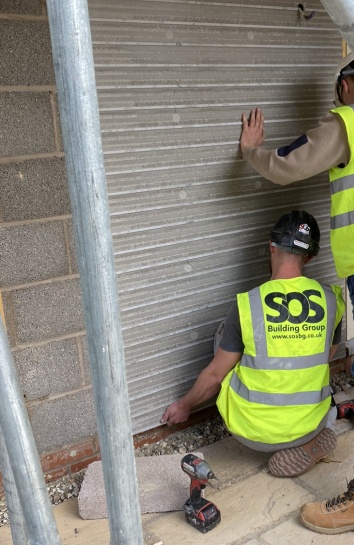

The backer panel is formed by profile cutting expanded polystyrene insulation (EPS) to produce a pattern of horizontal ribs projecting from the front face of the panel which align and support brick slips to form courses accurately and easily.
The insulated backer panel is expanded polystyrene with a BRE Green Guide Rating of A+. Panel size is 2400 x 1200 and 1200 x 1200 x Any Size thick Panels up to 100mm thick can be supplied! or Bespoke. Please call to discuss.
The thermal conductivity of the panel, the K-Value is 0.035W/mK.
Project specific U-Value calculations can be provided if required.
Brictec has an installed system weight from 31kg/m2.

Brictec can be fixed to masonry, concrete, sheathed timber or light gauge steel framed walls, SIPS and ICF, with or without a drainable cavity.
We Supply Only or Supply and Install Nationwide, Hundreds of Slips to Choose from !

Brictec systems are pleased to announce our external / internal wall panels either Insulated or plain Brick Slip Fibre Cement panels 2400 x 1200 and 1200 x 1200
These are from our specialized ranges of insulated / plain Backer Board panels

Brick Slip – Tracker Board
Brick Slip – Insulated Tracker Board
Rendered – Insulated Backer Board
Façade – Insulated Backer Board

Our insulated Backer Board wall panels are:
Exclusively fully UK Manufactured
Panels are A1 Warrington Fire Certificated or Render Panels with BBA Approvals if Required.
May be supplied in multiple thicknesses to requirement
Insulation fully certified
Fire resistant product – Class E certified
Brictec's board is a non-combustible flexible fibre cement building board which provides superior workability due to a unique fibre reinforced formulation.
They can be used in an extensive range of applications from fire rated partitions, non-combustible boiler encasing, timber frame fire rated walls. as well as an extensive range of OEM applications.
Brictec/s Panels have been tested for 60 minute fire rated partitions.

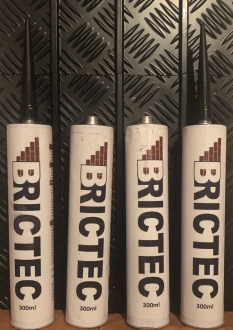

Fixings available for purchase for  tracking panels
38 fixings per 1200mm x 2400mm tracking sheet recommended.



Brick Slip Tracking System for use with Traditional, Modular, ICF, timber frame, SIP Build etc. and large scale applications speed up and de-skill the project. A variety of fixings means this can be applied on top of many substrate

		Insulated Fibre cement Panels  (1.2m x 2.4m)and(1200 x 1200) Introducing our Insulated Brick Slip Tracking System for use with Modular, ICF, timber frame and Traditional Build. for large scale applications to speed up the installation of the project. A variety of fixings means this can be applied on top of many substrates. This tracking is only suitable for 65mm and Imperial size brick slips (FIXINGS ARE NOT INCLUDED) With or Without Insulation With Brick Slip Tracker Rails
		Insulated Fibre cement Panels  (1.2m x 2.4m)and(1200 x 1200) Introducing our Insulated Fibre Cement System for use with Modular, ICF, timber frame and Traditional Build. for large scale applications to speed up the installation of the project. A variety of fixings means this can be applied on top of many substrates. This tracking is only suitable for 65mm and Imperial size brick slips (FIXINGS ARE NOT INCLUDED) With or Without Insulation Without Brick Slip Tracker Rails

All our systems have been designed in accordance with demands of modern construction industry. We focused mainly on achieving the fine balance between quality and cost-effectiveness of the end product. They are indistinguishable from traditional brickwork once installed and bricklaying skills are not required to achieve the desired traditional brickwork finish. Large areas of brickwork are supplied to site pre-fabricated in factory conditions making the installation less labour intensive and weather dependant. Both our external and internal systems do not require additional backing boards, unlike some other systems, which saves substantial costs which in turn makes our panels the most cost effective on the market.

EPS Insulation Board as defined in BS EN 13163 - EPS 200 Thermal Properties Thermal Conductivity (W/mK, at 10oC) - 0,034 Thermal Resistively (mK/W) - 29.41 Fire Rating Reaction to fire BS EN 13501 Class E (flame retardant)	Elimination of existing damp and mould. Savings on fuel bills due to reduced heat and cold loss. Maintaining comfortable internal temperatures all year round. With large projects you will save time, because it is quick to install and you don't need skilled labour. Can be fitted up-to 18 meters high Cut brick slips can be used

External BPS Designed primarily for external application on steel and timber framed buildings as rain screen cladding



Speed of installation, no need for additional backing board or manual installation of individual brick slips on site, most cost-effective external brick panel system on the market, ideal Rainscreen for timber or steel framed construction, A1 fire rated board with 60min fire resistance, large selection of brick slips

We can Match/Supply any Brick Shape, Type, Style or Colour you may Require

Brand New Facing and Reclaimed Bricks as Slips also Stone

We Cut our own Brick Slips 15mm - 20mm - 25mm - 30mm - 40mm - 50mm - 73mm - 75mm W.H.Y.
