EXTERNAL / INTERNAL BRICK SLIP CLADDING SYSTEM
Brictec's A1 Fire Rated Non-Combustible BOPAS-BRE Brick-Slip Panels
With or Without Tracker Lines also With or Without Insulation.
A1 non-combustible, BOPAS-BRE
Assurance, 3rd Party Accreditation Coming Soon, Warrington Fire Certification fibre cement building fire
board, Brictec's
high-quality flexible Fibre Cement (Portland Cement) building fire board
is perfect for use as a A1 fire rated brick slip runner / tracker panel
8x4 - 2440 x 1220 or 1220 x 1220
Offering excellent fire properties as well as high levels of dimensional
stability, Brictec's new panel is exceptional for use in
multiple applications.
Our panel is used primarily as a fire rated brick slip tracker panel or
building fire block board. Used extensively on both steel frame and
timber frame structures as well as traditional buildings, Our system can
used with all types of facade
solutions, (Safe Secure Brick Slip Cladding System)
Brictec is ideal for modular construction methods and traditional
builds, With a fire rating of 60 mins with all of our 12mm panels.
Insulated Fibre Cement Panels with (Portland Cement) with BBA approved Insulation
on rear if required,
Introducing our Insulated Brick Slip Tracking System for use with
Modular, ICF, timber frame and Traditional Build, for large scale
applications to speed up the installation of the project.
A variety of fixings means this can be applied on top of most
substrates. Our tracking system is suitable for 75mm, 65mm to 30mm, Reclaimed,
linear and Imperial
Brick Slips, Our panels can be machined to fit any
size slip..
Our complete A1 Fire Safe Tracker System: includes: Panels, Slips, Adhesive, Mortar and Fixings
Our Full Size Tracker Panel 1220 x 1220 (2386 x 1220)(Please ask about today's Prices)
Factory Build Before Being Shipped to Site

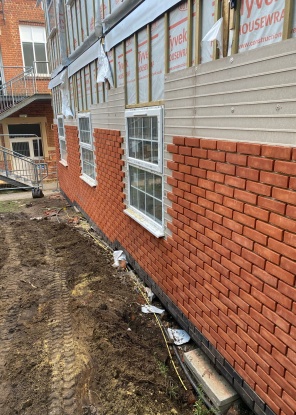

Our Tracker Panel System on a Modular School
We Manufacture our fire proof panels for any size slips here are 50mm slips
Just Completed by one of our Clients Using our Tracker Panel System

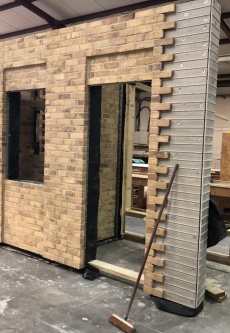

Factory Install of our A1 Fire Proof Tracker Panel System

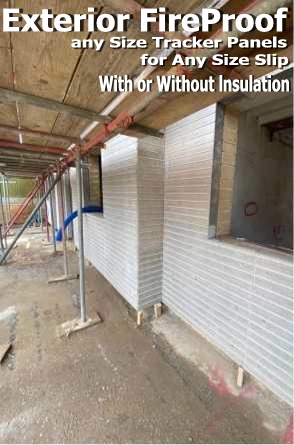

Site Install of our A1 Fire Proof Tracker Panels (North London)
Our Bespoke Fire Proof Tracker Panels with 48mm linear Slips

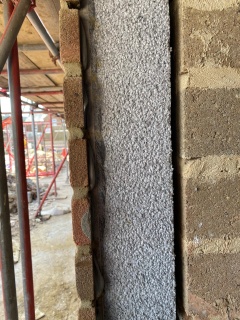

Our Fire Proof Tracker Panels ideal for ICF Buildings London
850 m2 Building using our Insulated Brick Slip Tracker and Render Panels

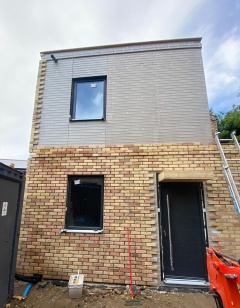

Bringing an Ugly Wall back to Beautiful with our Tracker Panel System
Office Block and Factory with our Insulated Brick Slip Tracker and Insulated Render Panels

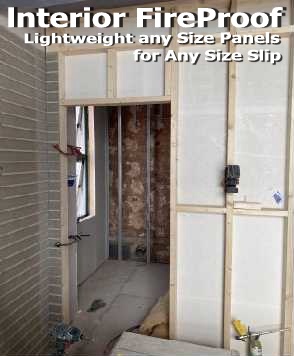

Use our 9mm tracker panels indoors makes Brick Slipping 65mm Slips Easy
Used on Modular Buildings off and onsite
Ideal for Extensions with or without Insulation
Brick Slip System on Modular Buildings

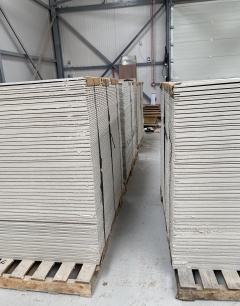

Our 65mm Tracking Panels and a Pallet of 50mm (linear Brick Blips) waiting to be loaded
Loaded and ready to Go (Part of a 548 m2 Order)
You can have any Brick Bond with our Systems
You can use any size Brick Slip with our systems (made to order)
Brictec's A1 Fire Proof Panels with BOPAS Accreditation is a brick faced external/internal wall cladding system. Developed and Manufactured by Brictec Systems Ltd for use as an external and Internal tracking panel / for sheathing on walls and structures. Our panels come in several sizes 8x4, 4x8 or 1220 x 1220 or Bespoke! Check our Panel info Top Right.
Beware of Imitations Ask to see
their Accreditations ! and Warranties We are the only
manufactures/suppliers.
Benefits
This system is ideal for large expanses of wall where speed of the
installation is required.
Versatile, fast and simple to install. Designed to be fixed directly to
battens or bracket systems (SFS) forming rigid external sheathing. Ideal
Rainscreen for prefabricated structures. You should
use a contact adhesive to take the sheets onto your substrate before
mechanically fixing the sheet in place.
When finished it's Indistinguishable from traditional brickwork and
with low maintenance it is the ideal solution.
Brictec is Certified for installation on buildings constructed with a
steel or wood frame also traditional build.
Technical Info

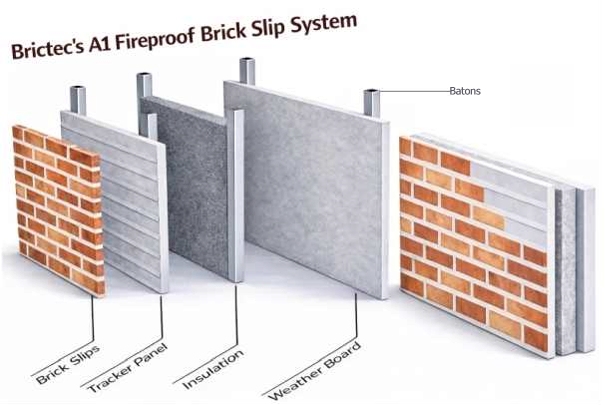

The composite backer panel comprises a 12mm thick Fibre Cement (Portland
Cement) Board formed by profile cutting tracking rails for guidance when
Installing. Along with your chosen brick, our backer panel provides a
system depth from 24mm with a 15mm slip or 29mm with a 20mm slip x 12mm
fire Board (excluding supporting structure SFS or mechanisms).
Brictec has an installed system weight from 53kg/m2. and the panels have
BOPAS and Warrington
Fire certification with 3rd Party Accreditation Coming Soon.
Installation
Brictec can be fixed to timber battens aluminium or light gauge steel
framing systems or direct onto block, brick, concrete and ICF
structures, the substrate needs to be level and stable. Please note
that the battens or bracket must be correctly positioned to meet the
system fixing requirements 400 centres is ideal, ask for details, if
washers and screws are required please ask, Cladding diagrams
and Cad Drawings upon request.
Our Easy to Install Brick Slip System Panels all with BOPAS and A1 Warrington Fire
A1 Fire Proof Brick Slip Tracker System
Quick and Easy with Brictec's panels (see our Video's on the right)
Brictec's training inside Modular factories or on installation Site
Full Panels Delivered to Site and Installed
A1 Fire Proof Brick Slip Tracker System
Quick and Easy with Brictec's panels (see Video's on right)
520 m2 Slips and A1 Fire Proof tracker Panels
Low Cost
Corners NOTE: FULL (2.4m x 1.2m) SIZED PANELS SHIPPED ON A DOUBLE SIZE PALLET. REQUIRES FORK TRUCK OFF LOAD FACILITIES UPON DELIVERY OR A MINIMUM OF 2 PERSON HANDBALL OFFLOAD. Ask for a Quote today you will be Surprised (We also offer on site Training if required)
We manufacture tracker boards to order, Lead time one / three weeks Please ask about Current Prices as they can Changing Weekly ! |
Brictec Systems Ltd
"You are only Limited by Your imagination"
Extensions using Brictec's Fire Proof Tracker Panels
We Manufacture our Panels to Fit any size Brick Slip 35mm to 75mm 'Just Ask the Question' !
